INTRODUCTION:
Anti Vibration machine mount ISO MOUNT very ideally useful for the installation of initial torque & rotary motion machines.

SALIENT FEATURES OF ISO MOUNT

1. Absorbs shocks & vibration
2. No concrete foundation or grouting needed
3. Because of design of casting, rubber is protected from oil & physical damages.
4. Lowers noise level.
5. Free from external vibration.
6. Easy installation
7. Can safely be installed on Mobile units like Train, Vans, Trucks, and Wagons.

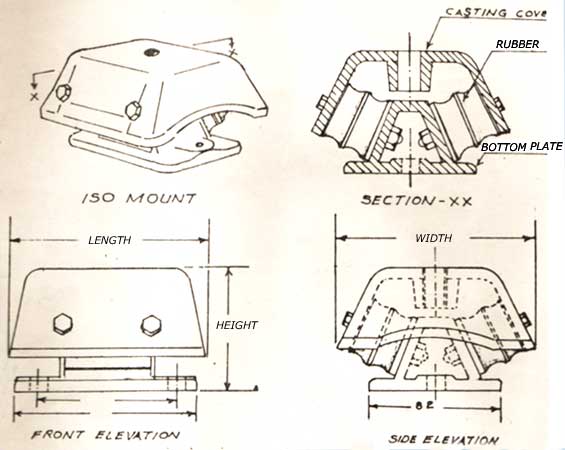

CONSTRUCTION:
ISO MOUNT is made up of a casting cover and bottom plate with a pair of rubber ¨Cto ¨C metal bonded flexible units within which are at an angular position. The bottom plate has two hole laterally to enable fix the same on the floor or structure and the cover plate has a threaded hole to mount the equipment.
The Bottom Plate :  Has a hole on either side to fix ISO MOUNT on channel , floor etc. if at all required.
ISO MOUNT can be place on a Channel/ floor by means of bolt. Also, if needed a Friction Pad made out of rubber can also be used instead of conventionally founded flooring.

WORKING

When machine is placed on ISO MOUNT, the rubber to metal bonded rectangular inserts are loaded in compression & Shear. A combination which gives the longest life with

APPLICATION OF ISO MOUNT

1. Generating sets, Pump sets
2. Fans & Blowers
3. Compressors
4. Grinding Machines
5. Food Processing Machines
6. Pharmaceutical Machines
7. Centrifuges
8. Crushers
9. Diesel Engines
10. Engine Test Beds
11. Exhaust Systems (pipe Supports)
12. Hydraulic Machinery
13. Printing machinery
14. Rotary Driers and Sifters
15. Screens
16. Textile Machinery

PHYSICAL DIMENSIONS

ISO MOUNT

FRICTION PADS

FRICTION PAD is made out Rubber. When bottom plate of ISO MOUNT is not fix with bolt on floor, channel or any other mobile equipment, then FRICTION PAD can be use bellow bottom plate of ISO MOUNT.
FRICTION PAD will create friction on floor resulting machine will not move / shift from installed position. Moreover, it will also absorb vibration from the floor which will not transfer vibration upto base plate of machine.
